How to add custom Open in excel using custom entity in D365F&O X++

 Add a custom template to export Expense journals to Excel. All operations(create,update,delete)  needs to be done using opening excel and viceversa.

Instead of  creating a new entity, I have duplicated the entity which was previously used for export and made changes. Now this is my custom entity.

Note :The fields which are in Auto report, only those fields will be available in excel.

Create a class :

Take the extension of form where custom template needs to be available.

using Microsoft.Dynamics.Platform.Integration.Office;

using Microsoft.Dynamics.Platform.Integration.Office.FilterBinaryNode;

[ExtensionOf(formStr(LedgerJournalTransCost))]

internal final class DaxLedgerJournalTransCost_Extension

{

   [FormEventHandler(formStr(LedgerJournalTransCost), FormEventType::Initializing)]

   public static void ComponentSalesMasterListPage_OnInitializing(xFormRun sender, FormEventArgs e)

   {

       const str CustomExportTHSSalesMasterToExcelOptionId = "Dax Custom entity export";

       FormRun formRun = sender as FormRun;

       if (formRun)

       {

           OfficeFormRunHelper officeHelper = formRun.officeHelper();

           if (officeHelper)

           {

               officeHelper.OfficeMenuInitializing += eventhandler(DaxLedgerJournalTransCost_Extension::officeMenuInitializingHandler);

           }

       }

   }

   private static void officeMenuInitializingHandler(FormRun formRun, OfficeMenuEventArgs eventArgs)

   {

       const str CustomExportLinesToExcelOptionId = "Dax Custom entity export";

       OfficeMenuOptions menuOptions = eventArgs.menuOptions();

       // Find the entity options if they were included by default

       OfficeMenuDataEntityOptions entityOptions = menuOptions.getOptionsForEntity(tableStr(DaxExpenseJournalLineEntity));

       if (!entityOptions)

       {

           // The entity options were not included. Add them.

           entityOptions = OfficeMenuDataEntityOptions::construct(tableStr(DaxExpenseJournalLineEntity));

           menuOptions.dataEntityOptions().addEnd(entityOptions);

       }

       OfficeGeneratedExportMenuItem salesMasterMenuItem = OfficeGeneratedExportMenuItem::construct(tableStr(DaxExpenseJournalLineEntity),CustomExportLinesToExcelOptionId);

       salesMasterMenuItem.displayName('Dax Custom entity export');

       salesMasterMenuItem.getDataEntityContext +=  eventhandler(DaxLedgerJournalTransCost_Extension::getDataEntityContextHandler);

       menuOptions.customMenuItems().addEnd(salesMasterMenuItem);

       entityOptions = OfficeMenuDataEntityOptions::construct(tableStr(DaxExpenseJournalLineEntity));

       eventArgs.menuOptions().dataEntityOptions().addEnd(entityOptions);

   }

   private static void getDataEntityContextHandler(OfficeGeneratedExportMenuItem _menuItem, FormRun formRun, ExportToExcelDataEntityContext dataEntityContext)

   {

       ExportToExcelDataEntityContext context = dataEntityContext;

       const str CustomExportLinesToExcelOptionId = 'Dax Custom entity export';

       LedgerJournalTrans ledgerJournalTrans = formRun.dataSource(formDataSourceStr(LedgerJournalTransCost, LedgerJournalTrans)).cursor();

       if (_menuItem.id() == CustomExportLinesToExcelOptionId )

       {

           context.addEntityDefault(tableStr(DaxExpenseJournalLineEntity));

           ListEnumerator enumerator = context.entities().getEnumerator();

           while (enumerator.moveNext())

           {

               ExportToExcelDataEntityInfo entity = enumerator.current();

               if (entity.entityName() == tableStr(DaxExpenseJournalLineEntity))

               {

                   ExportToExcelFilterTreeBuilder filterBuilder = new ExportToExcelFilterTreeBuilder(tableStr(DaxExpenseJournalLineEntity));

                   FilterNode filterExpression = filterBuilder.areEqual(fieldStr(DaxExpenseJournalLineEntity, JournalBatchNumber), ledgerJournalTrans.JournalNum);

                   entity.filter(filterExpression);



                   //FilterNode filterExpression1 = filterBuilder.areEqual(fieldStr(DaxExpenseJournalLineEntity, DataareaId), curExt() );                   // entity.filter(filterExpression);

                   //FilterCollectionNode collectionNode = new FilterCollectionNode();

                   //collectionNode.Operator =  Microsoft.Dynamics.Platform.Integration.Office.FilterOperators::And;

                   //var collection = collectionNode.Collection;

                   //if (ledgerJournalTrans.JournalNum)

                   //{

                   //    collection.Add(filterExpression);

                   //}

                   //if (ledgerJournalTrans.DataAreaId == 'USMF')

                   //{

                   //    collection.Add(filterExpression1);

                   //}

                   //entity.filter(collectionNode);

               }

           }

       }

   }

}

..................

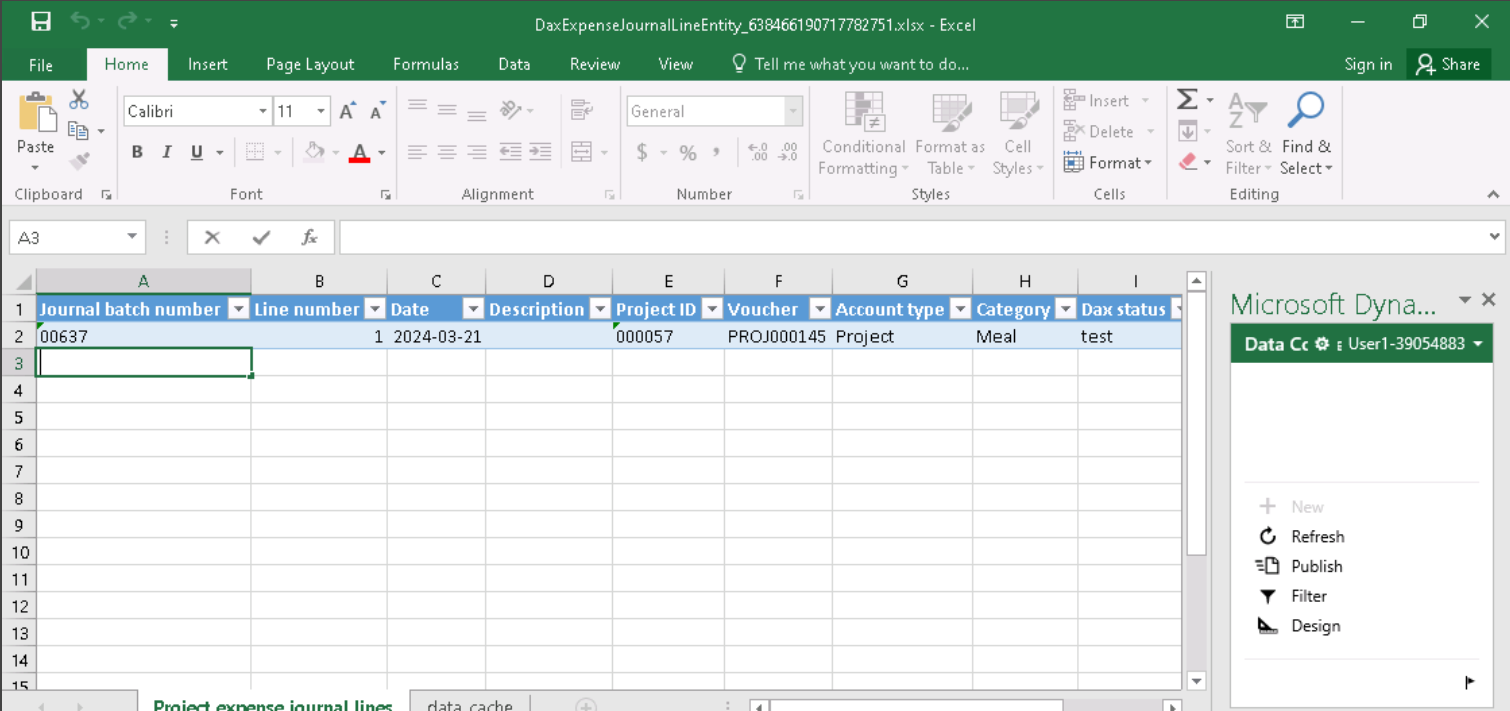

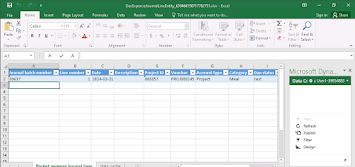

After build, our template is added to form.

Click on our custom template then lines will be exported.

Create a new record in Excel and click on publish, then it is going to be updated in Form.

How to add custom fields in Open in Excel using standard entity

Using Resource :

Here my requirement is to add the custom field to Expense journal and export the data using Open in excel with custom template using standard entity.

Project management and accounting>Journals>Expense

Copy the name and search it in Document templates to download the existing template and to add our custom fields.

Organization administration > Office intigration > Document templates.

Reload the templates:

Download the existing template and add the field.

First add the field in Entity level.

After build, open the downloaded excel and add the field in excel.

click on design and select the entity in which custom fields are added.

select the field and click on update. Then field will be added in excel.

Create a Resource and add the updated excel file.

Create a class to get attach the custom template to form :

using Microsoft.Dynamics.Platform.Integration.Office;

   class DaxExpenseJournalClass extends DocuTemplateRegistrationBase implements LedgerIJournalExcelTemplate

   {

       // resource that contains xlsx file.

       private const DocuTemplateName ExcelTemplateName = resourceStr(DaxExpenseJournal);

       // lines Data Entity

       private const EntityName LineEntityName = tableStr(ExpenseJournalLineEntity);

       private const FieldName LineEntityJournalNum = fieldStr(ExpenseJournalLineEntity, JournalBatchNumber);

       private const FieldName LineEntityDataAreaId = fieldStr(ExpenseJournalLineEntity, dataAreaId);

       private const FieldName HeaderEntityName = tableStr(ExpenseJournalHeaderEntity);

       private const FieldName HeaderEntityJournalNum = fieldStr(ExpenseJournalHeaderEntity, JournalBatchNumber);

       // header Data Entity.

       private const FieldName HeaderEntityDataAreaId = fieldStr(ExpenseJournalHeaderEntity, dataAreaId);

   public void registerTemplates()

       {

           this.addTemplate(OfficeAppApplicationType::Excel,

                           ExcelTemplateName,

                           ExcelTemplateName,

                           "Dax Expense Journal",

                           "Dax Expense Journal",

                           NoYes::No,

                           NoYes::No);

       }

   public boolean isJournalTypeSupported(LedgerJournalType _ledgerJournalType)

       {

           // only daily journals are supported in this template.

           return _ledgerJournalType == LedgerJournalType::Cost;

       }

   public DocuTemplateName documentTemplateName()

       {

           return ExcelTemplateName;

       }

   public Set supportedAccountTypes()

       {

           // Set with supported account types.

           Set accountSetTypes = new Set(Types::Integer);

       accountSetTypes.add(LedgerJournalACType::Project);

           accountSetTypes.add(LedgerJournalACType::Ledger);

           return accountSetTypes;

       }

   public Set supportedOffsetAccountTypes()

       {

           // Set with supported offset account types.

           Set offsetAccountTypeSet = new Set(Types::Integer);

       offsetAccountTypeSet.add(LedgerJournalACType::Ledger);

           return offsetAccountTypeSet;

       }

   public boolean validateJournalForTemplate(LedgerJournalTable _ledgerJournalTable)

       {

           return LedgerJournalExcelTemplate::validateJournalForTemplate(_ledgerJournalTable, this);

       }

   public EntityName headerEntityName()

       {

           return HeaderEntityName;

       }

   public EntityName lineEntityName()

       {

           return LineEntityName;

       }

   public FieldName headerJournalBatchNumberFieldName()

       {

           return HeaderEntityJournalNum;

       }

   public FieldName headerDataAreaFieldName()

       {

           return HeaderEntityDataAreaId;

       }

   public FieldName lineJournalBatchNumberFieldName()

       {

           return LineEntityJournalNum;

       }

   public FieldName lineDataAreaFieldName()

       {

           return LineEntityDataAreaId;

       }

   public FilterCollectionNode appendHeaderEntityFilters(FilterCollectionNode _headerFilter, ExportToExcelFilterTreeBuilder _headerFilterBuilder)

       {

           return _headerFilter;

       }

   /// <summary>

   /// Filter the vouchers which are having accounttype as Project and offset account as Ledger

   /// </summary>

   /// <param name = "_lineFilter"></param>

   /// <param name = "_lineFilterBuilder"></param>

   /// <returns></returns>

   public FilterCollectionNode appendLineEntityFilters(FilterCollectionNode _lineFilter, ExportToExcelFilterTreeBuilder _lineFilterBuilder)

       {

           // creates excel filter to show only lines that have Bank account type

           // and Ledger offset account type

           FilterCollectionNode lineFilter = _lineFilterBuilder.and(

           _lineFilterBuilder.areEqual(fieldStr(ExpenseJournalLineEntity, AccountType), LedgerJournalACType::Project),

           _lineFilterBuilder.areEqual(fieldStr(ExpenseJournalLineEntity, OffsetAccountType), LedgerJournalACType::Ledger));



           return _lineFilterBuilder.and(_lineFilter, lineFilter);

       }

   public void applyCustomTrimming(Excel.IWorkbookManager _templateManaer, Excel.WorkbookSettingsManager _settingsManager, LedgerJournalTable _ledgerJournalTable)

   {

   }

}

.....................

A custom template is added to form.

When i export using the newly added template the data is being updated to custom field also.

Import of XML file

 public static void main(Args _args)

   {

       XmlDocument responseDoc;

       XmlNodeList data;

       XmlElement  nodeData,payment_Indicator,payment_Date,uniqueCustRefNo,debitAccountNo,nameofBeneficiary,

                   vendorBeneficiaryCode,beneficiaryBankAcNo,beneficiaryBankIFSCCode,instrumentAmount,

                   remarks,txnStatus,txnUTR,txnREMARK,txnProsDate;



       //#define.filename(@'C:\Temp\sales.xml')//ToDO: File name to be given

       #define.filename(@'E:\Response\05032024_113245_INVEST_INDIA_RES.xml')//ToDO: File name to be given

       responseDoc = XmlDocument::newFile(#filename);

       data = responseDoc.selectNodes('//'+"Data");

       nodeData = data.nextNode();



       try

       {

           ttsbegin;

           while(nodeData)

           {

               payment_Indicator = nodeData.selectSingleNode("Payment_Indicator");

               payment_Date = nodeData.selectSingleNode("Payment_Date");

               uniqueCustRefNo = nodeData.selectSingleNode("UniqueCustRefNo");

               debitAccountNo = nodeData.selectSingleNode("DebitAccountNo");

               nameofBeneficiary = nodeData.selectSingleNode("NameofBeneficiary");

               vendorBeneficiaryCode = nodeData.selectSingleNode("VendorBeneficiaryCode");

               beneficiaryBankAcNo = nodeData.selectSingleNode("BeneficiaryBankAcNo");

               beneficiaryBankIFSCCode = nodeData.selectSingleNode("BeneficiaryBankIFSCCode");

               instrumentAmount = nodeData.selectSingleNode("InstrumentAmount");

               remarks = nodeData.selectSingleNode("Remarks");

               txnStatus = nodeData.selectSingleNode("TxnStatus");

               txnUTR = nodeData.selectSingleNode("TxnUTR");

               txnREMARK = nodeData.selectSingleNode("TxnREMARK");

               txnProsDate = nodeData.selectSingleNode("TxnProsDate");

               nodeData = data.nextNode();

           }

           ttscommit;

           //Info("File is processed");

           info(strFmt("%1,%2,%3,%4",payment_Indicator.text(),payment_Date.text(),uniqueCustRefNo.text(),debitAccountNo.text()));

       }

       catch (Exception::Error)

       {

           Throw (Exception::Error);

       }

   }

.....................

OData Filters

OData is an Open standard protocol for creating and consuming data.

We can create or update or delete only a single record using OData.

URL to get the all public entities.

D365 URL/data

To get the Particular Entity:

URL/data/public collection name of entity/?cross-company=true.

the name should be same as public collection name even capital and small letters also.

without using cross-company=true you will not get any data.

To get in JSON format :

URL/data/Vendors?cross-company=true&$format=json

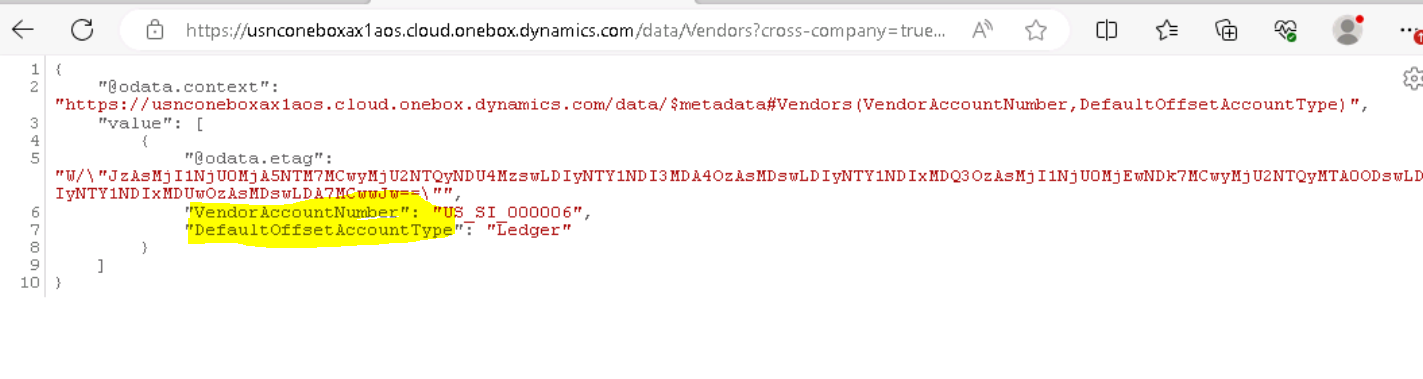

To apply filters:

URL/data/Vendors?cross-company=true&$format=json&$filter=VendorAccountNumber eq 'US_SI_000006'

&$select=VendorAccountNumber ,DefaultOffsetAccountType

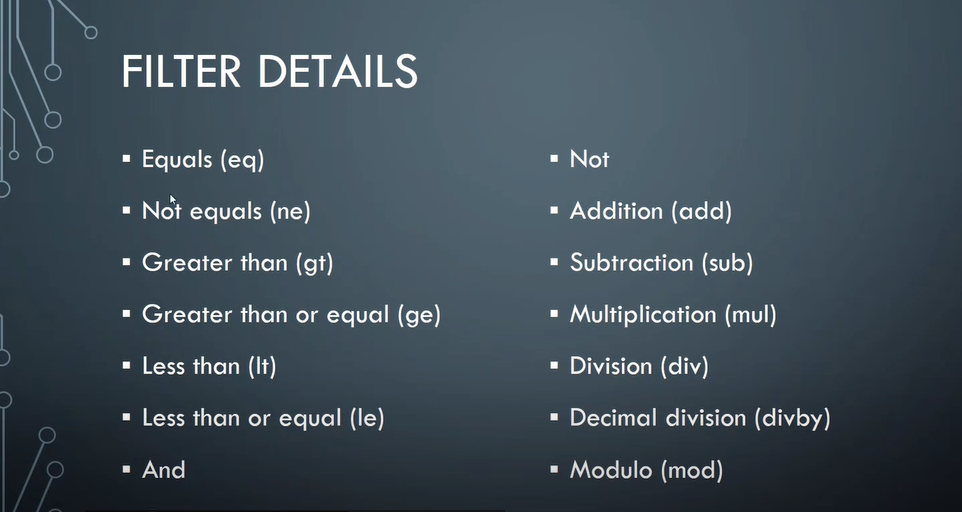

Filter details which can apply in URL

OData Actions:

Reference:

Data Integration with OData

https://www.youtube.com/watch?v=RshNKniFomI
